The World's 1st Open Source & Open Hardware
Network Attached Storage (NAS).

ORDER ON KICKSTARTER

Helios4: your own Private Cloud

Fast Media files streaming

Program your movie download & Get Fast access to Videos, Pictures & Music from any device.

Share memories with friends

Share your photos & files and let friends and family access them anywhere, anytime...

Protect your family data

Your data is protected from corruption & loss, with RAID redundancy never lose your memories again.

Features & Benefits

Helios4 is the corner stone for a perfect Home network

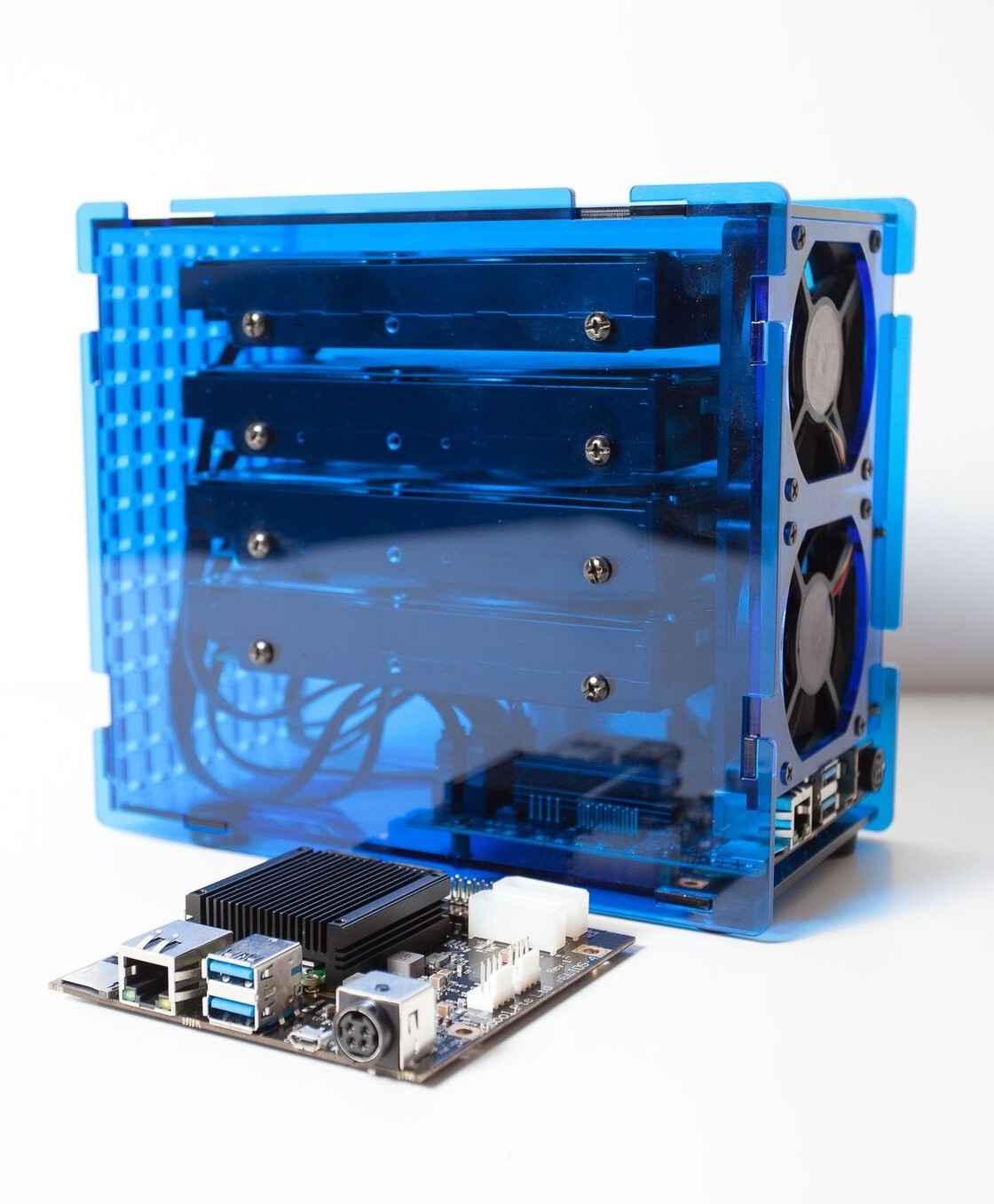

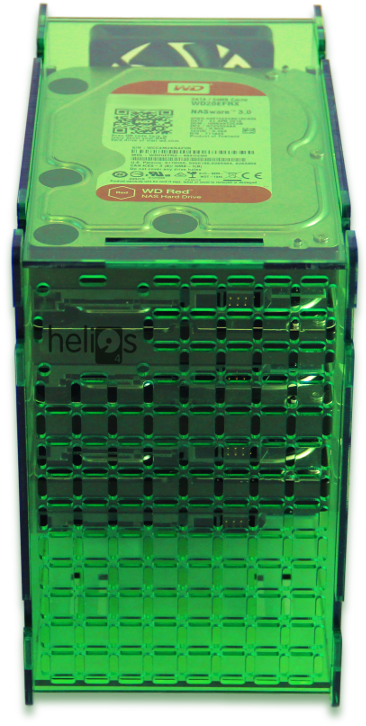

device

Size (Height x Width x Depth):
182 mm x 107 mm x 210 mm

Compact Box

Half the Volume Size of 4 Bay NAS competitors

App Ecosystem

Turnkey solution & Access to thousand of Free Open Apps

Cost efficient

Up to 50% less than the NAS market standards and you save on Energy

Easy Set-up

Custom Color DIY NAS assembled in less than 5 minutes

Specifications Overview

Helios4 is the perfect recipe of high speed interfaces to build a real NAS.

High Performance ARM System-on-Chip

The Marvell ARMADA® 388 is a robust energy-efficient System on Chip (SoC) with very powerful processing abilities especially suited for headless data processing, networking and storage. This Dual-core ARM Cortex A9 CPU clocked at 1.8 Ghz integrates a Cryptographic and XOR DMA engines to provides the best level of performance for NAS functionality.

4 x SATA 3.0 Ports

The only ARM based board on the market that offers 4x SATA 3.0 ports. This is the key feature that makes this platform the first  single board computer specially designed for Network Attached Storage. Enjoy up to 40TB of storage (4x Disk of 10TB) while insuring enough throughput to share your data across your entire home or small office network.

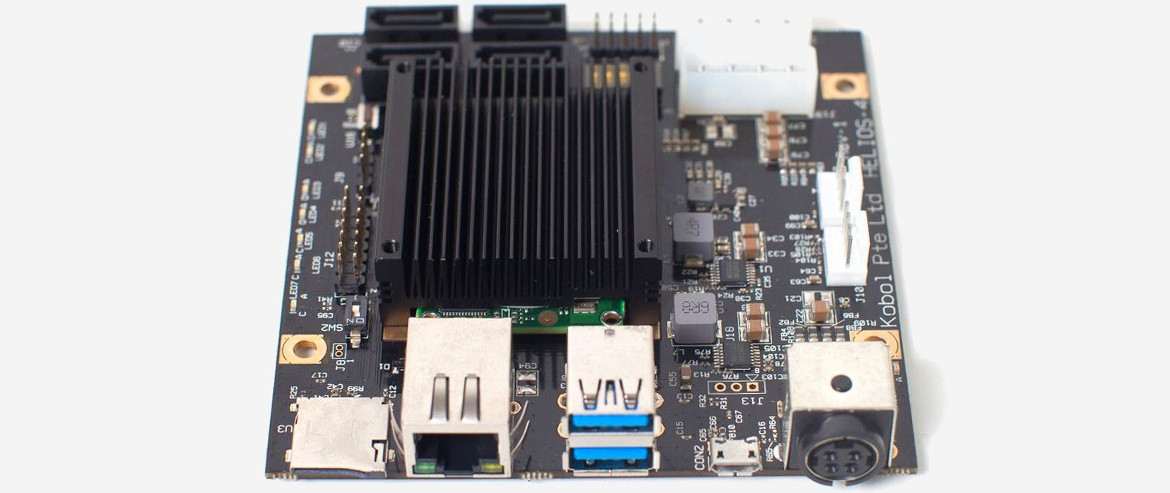

device

Size: 100 mm x 100 mm

1GB to 2Gb DDR3L Memory

Choose the right amount of DDR3L memory for your applications, from a perfect 1GB to a generous 2GB.

2 x USB 3.0 POrts

Connect external storages and enjoy lighting speed to transfer data from or to your hard drives. Or connect a WiFi dongle to make Helios4 wireless.

True Gigabit ethernet

Reach the full potential of your storage over your network thanks to a full duplex gigabyte Ethernet that will always perform at maximum speed.

Ultra high speed SD card interface

Enjoy the simplicity of running your operating system directly from an SD card. Support SDHC or SDXC cards with a bus speed of up 104 MByte/s.

2 x PWM FAN HEADERS

High performance and high density systems require adequate active cooling. Connect up to 2x PWM fans with automatic speed control and monitoring.

RICH I/O Interfaces

* Add new features with I2C and GPIO headers (LCD screen & Control buttons).
* Access serial console directly via dedicated mini USB port.


Pricing Options

Pricing
ORDER on kickstarter

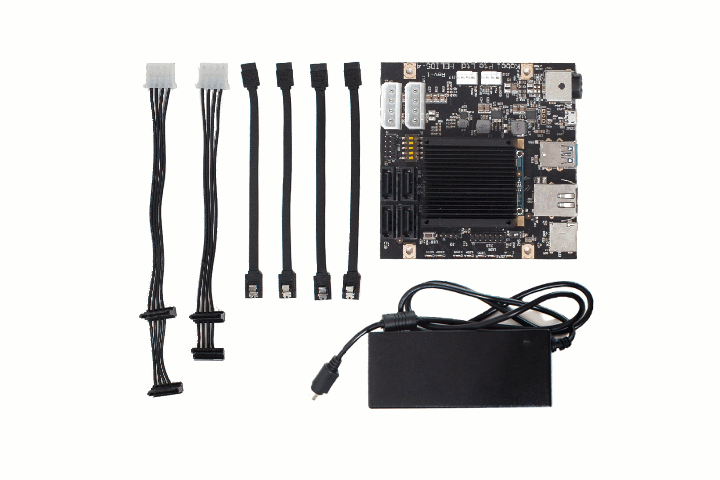

Basic Kit (1GB)
US$ 139

- Helios4 (1GB)
- SATA Cables
- AC Adapter (12V/8A)


Pricing
ORDER on kickstarter

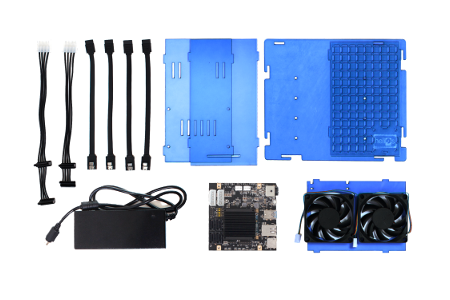

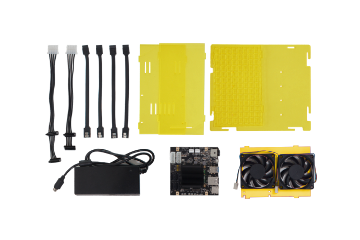

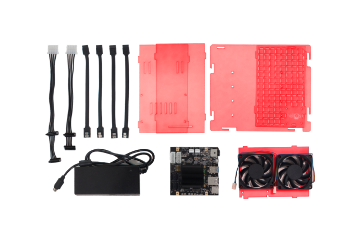

Full Kit (1GB)
US$ 169

- Helios4 (1GB)
- Color Casing Kit
- 2x Fans
- SATA Cables
- AC Adapter (12V/8A)

Pricing
ORDER on kickstarter
Full Kit (2GB)
US$ 185

- Helios4 (2GB)
- Color Casing Kit
- 2x Fans
- SATA Cables
- AC Adapter (12V/8A)

Our Partners

Your Personal App Server.

Have your own online File storage, Social network or Email server. Great Apps like ownCloud & Diaspora are available on Syncloud which adapts all these applications for the best user experience on ARM platform.

The Open NAS Solution.

The next generation of NAS turn key solution based on Debian Linux. It is a simple and easy out-of-the-box solution that will allow everyone to install and administrate a NAS without extensive knowledge.

Linux for ARM Development boards.

Lightweight Debian and Ubuntu based distribution specialized for ARM developing boards. Armbian provides a powerful build and software development tools which is supported by a vibrant community.

Simple Robust Embedded Computing Solutions

SolidRun is a global leading developer of powerful energy-efficient embedded computing solutions - SOMs & SBCs based on NXP, Marvell & Intel SoCs.


pic

We Believe in Open Source

The Helios4 was from the start a project by community for the community.

Open source software

Because simply this project wouldn't even exist without all the amazing projects out there, any of our software contribution will of course be published on our Github.

open source hardware

We hope people will adopt our platform and make it their own therefore all hardware details along with schematics will be available on our Wiki page.


55,000+

Linux Applications

1000Mbps

data streaming

+40Tb

Data storage

50%

Cheaper

Want to know more about Helios4 ?

VISIT OUR KICKSTARTER
